Mustard cpDNA -- 2022 Class PCR-RFLP digests
All digests below include ladders in the left and/or right lanes. Samples should be arranged alphabetically from left to right (A toH, J to M).
The ladder lanes flanking the digests included a mix of NEB's 100 bp ladder and 1 kb ladder (see images below).
Clicking on any gel image will bring up a new browser window with a higher resolution image of the digest.
Our results this year can be compared with those from 2004, 2005, 2007, 2009, 2010, 2011, 2013, 2014, 2016, 2017, 2018, 2019, , 2020, or 2021.
| Ladders used: |
NEB 100bp ladder
 |
NEB 1 kbladder
 |
|

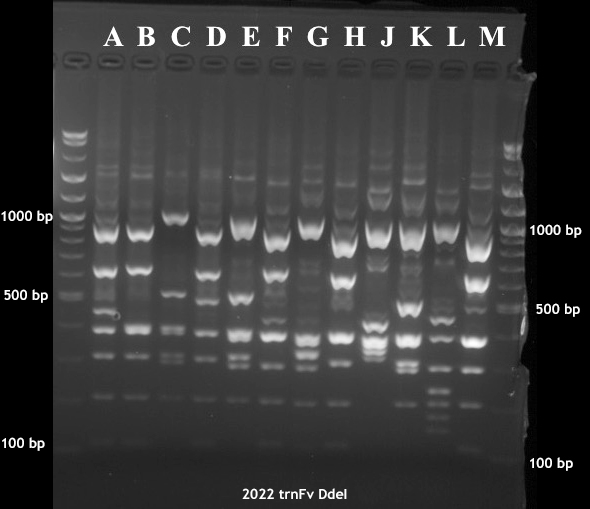

trnF-trnV DdeI
(click on image for an enlarged image in a new window)
|
|

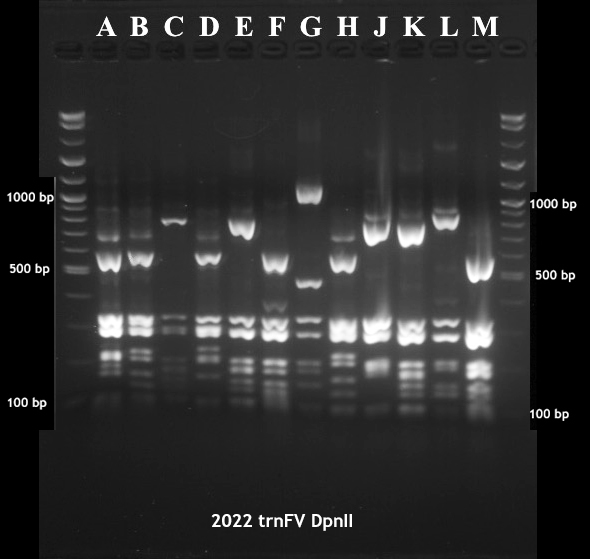

trnF-trnV DpnII
(click on image for an enlarged image in a new window)
|
|

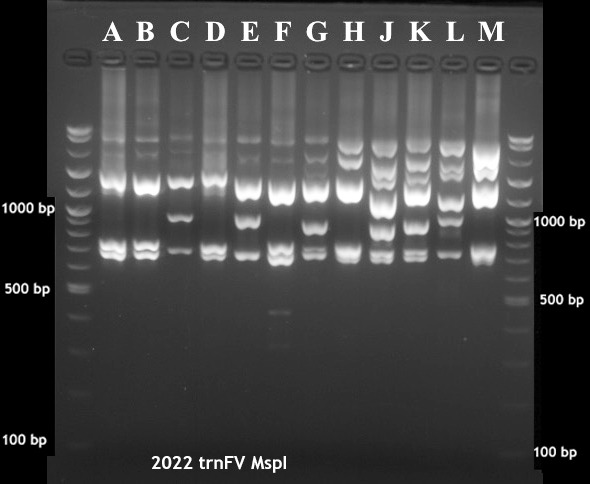

trnF-trnV MspI
(click on image for an enlarged image in a new window)
|
|

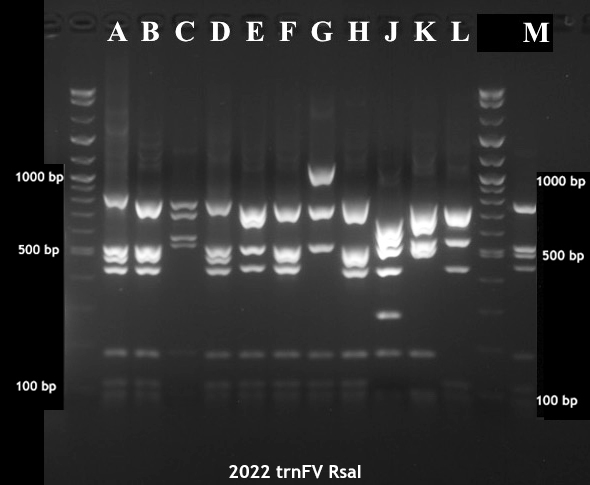

trnF-trnV RsaI
(click on image for an enlarged image in a new window)
|
|

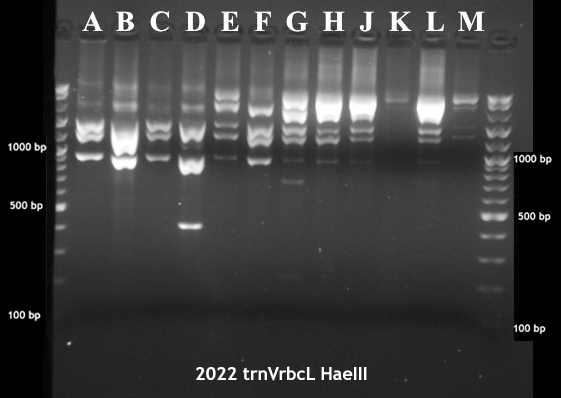

trnV-rbcL HaeIII
(click on image for an enlarged image in a new window)
|

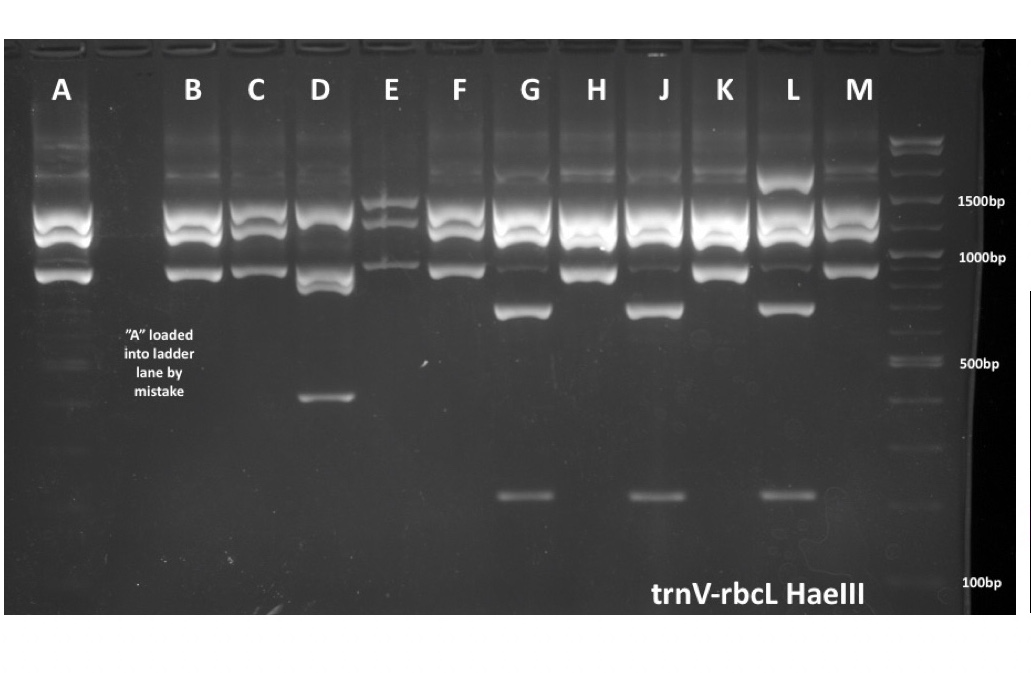

2021 trnV-rbcL HaeIII for comparison
(click on image for an enlarged image in a new window)
|
|

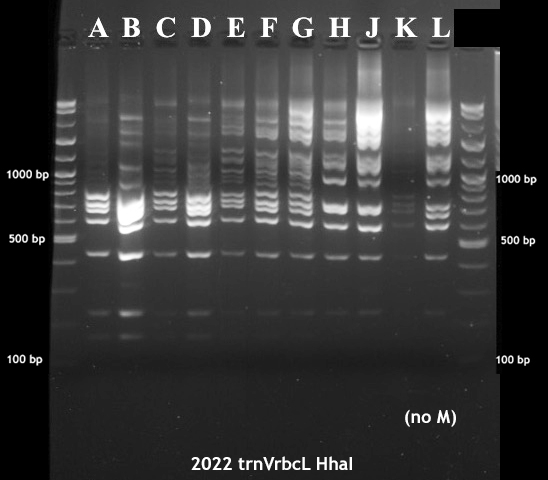

trnV-rbcL HhaI
(click on image for an enlarged image in a new window)
|

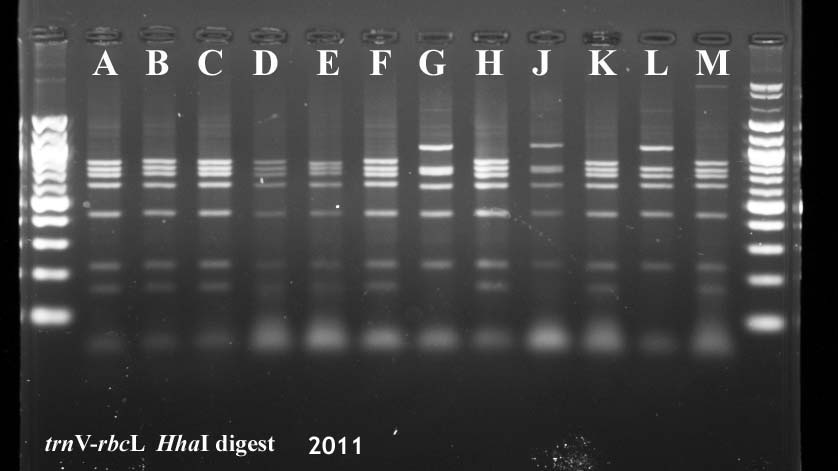

2011 trnV-rbcL HhaI for comparison
(click on image for an enlarged image in a new window)
|
|

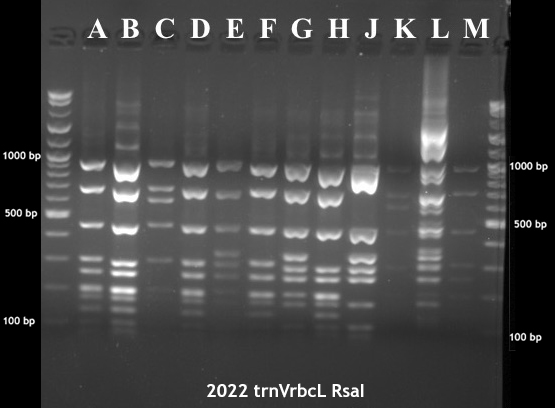

trnV-rbcL RsaI
(click on image for an enlarged image in a new window)
|

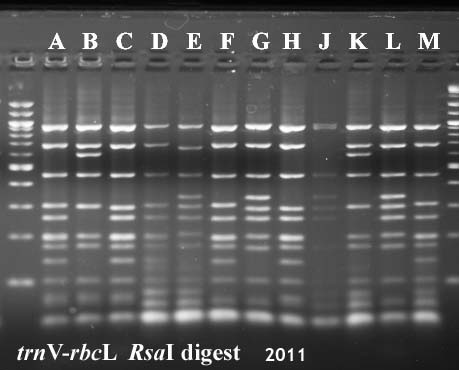

2011 trnV-rbcL RsaI for comparison
(click on image for an enlarged image in a new window)
|
