Mustard cpDNA -- 2018 PCR RFLP digests
All digests below include ladders in the left and/or right lanes. Samples should be arranged alphabetically from left to right (A toH, J to M).
The ladder lanes flanking the digests included a mix of NEB's 100 bp ladder and 1 kb ladder (see images below).
Clicking on any gel image will bring up a new browser window with a higher resolution image of the digest.
Our results this year can be compared with those from 2004, 2005, 2007, 2009, 2010, 2011, 2013, 2014, 2016, or 2017
NEB 100bp ladder ![]() |
NEB 1 kbladder ![]() |

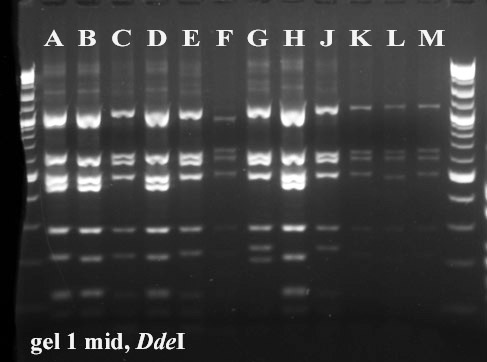

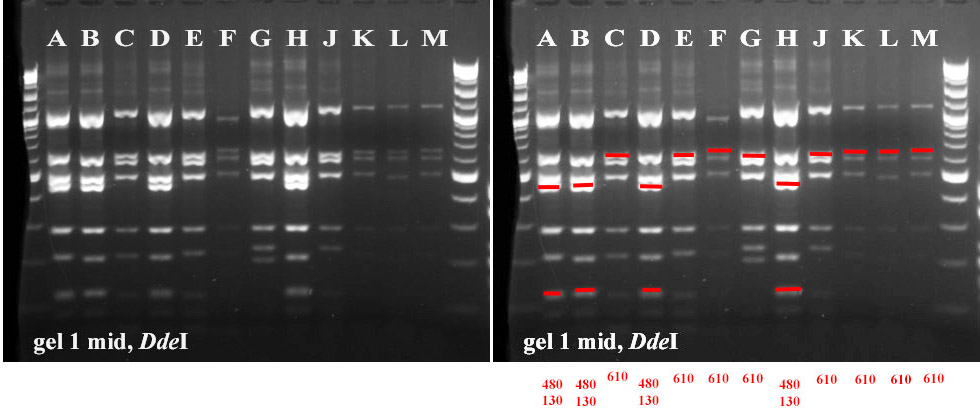

![]() trnVrbcL DdeI |

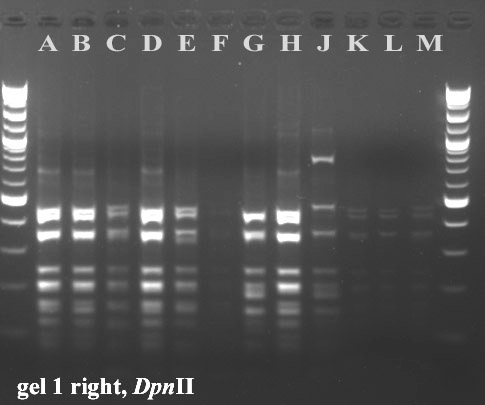

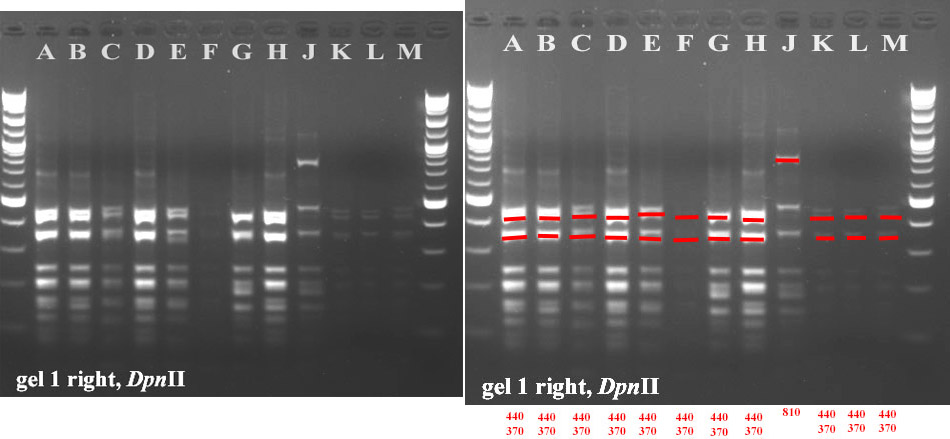

![]() trnVrbcL DpnII |

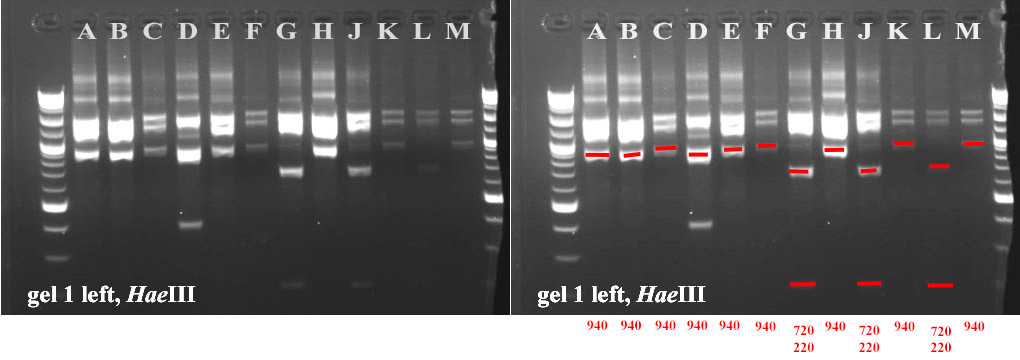

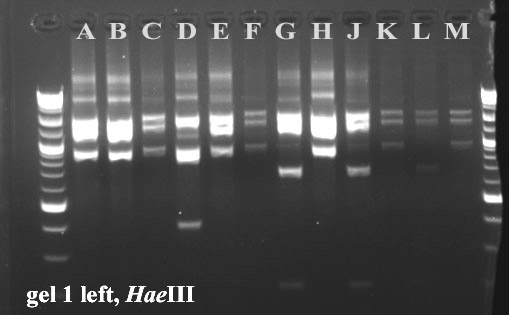

![]() trnVrbcL HaeIII |

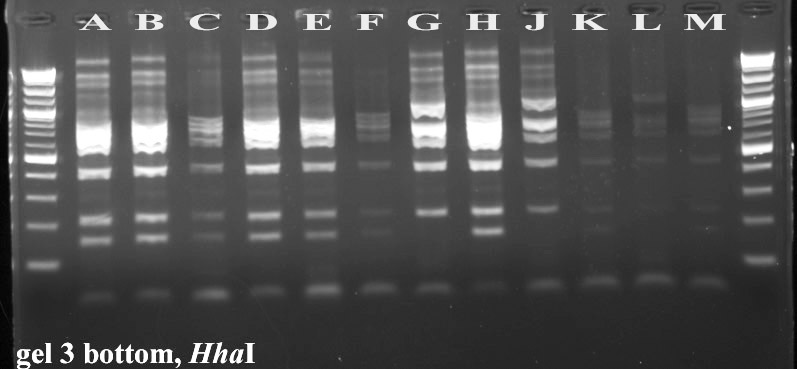

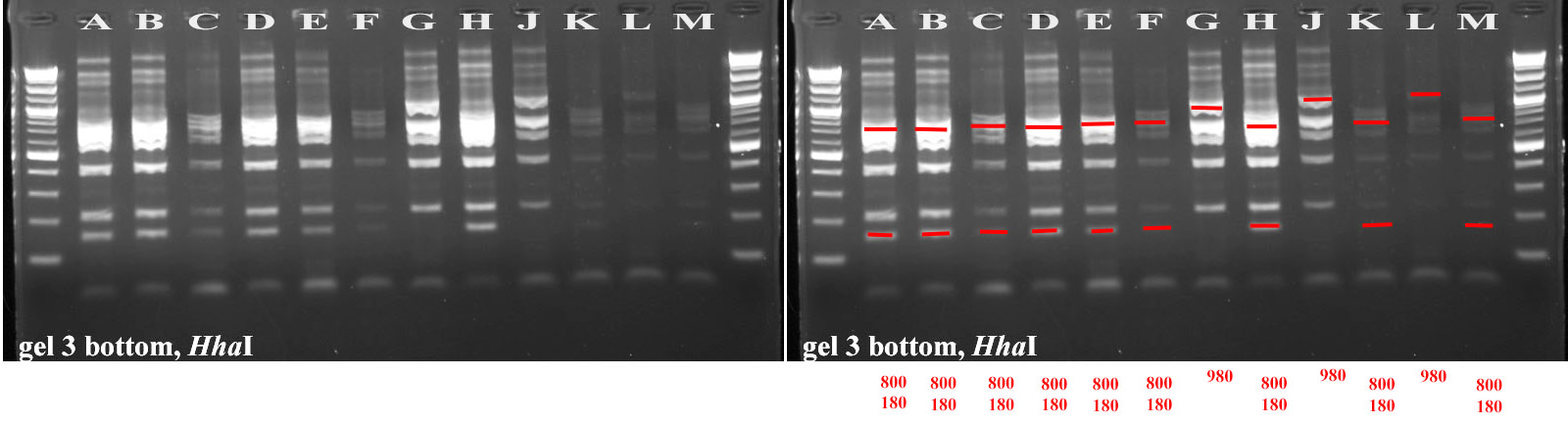

![]() trnVrbcL HhaI |

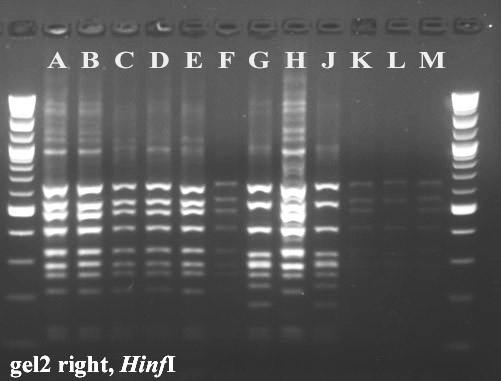

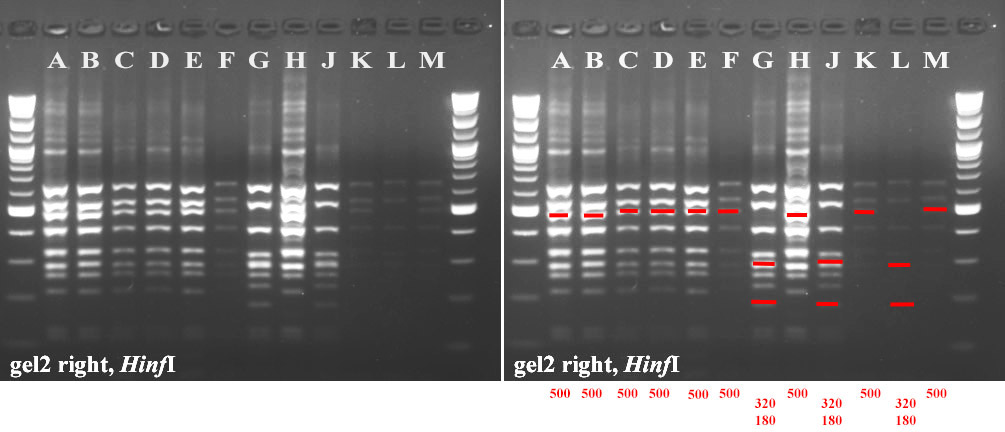

![]() trnVrbcL HinfI |

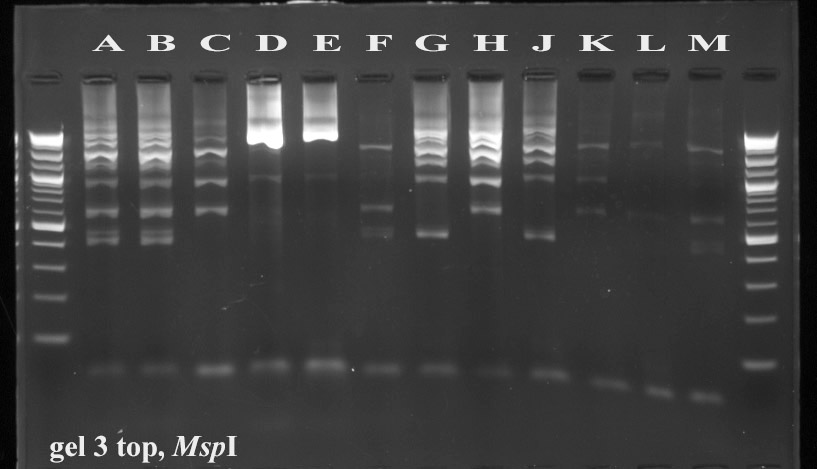

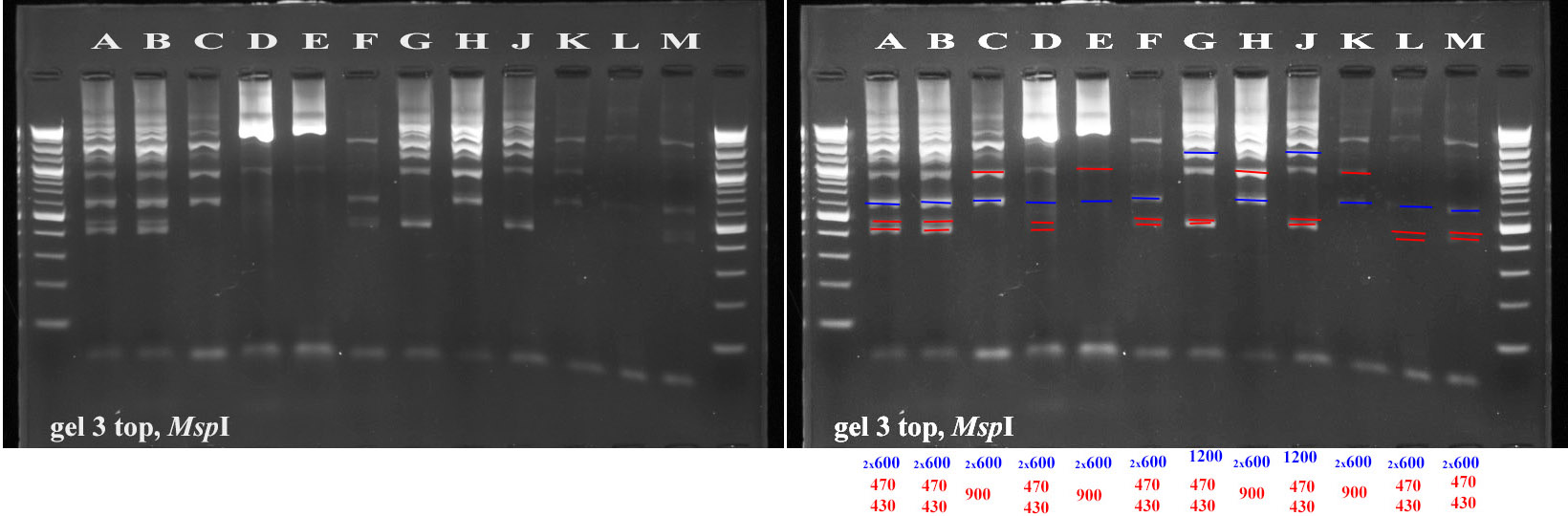

![]() trnVrbcL MspI |

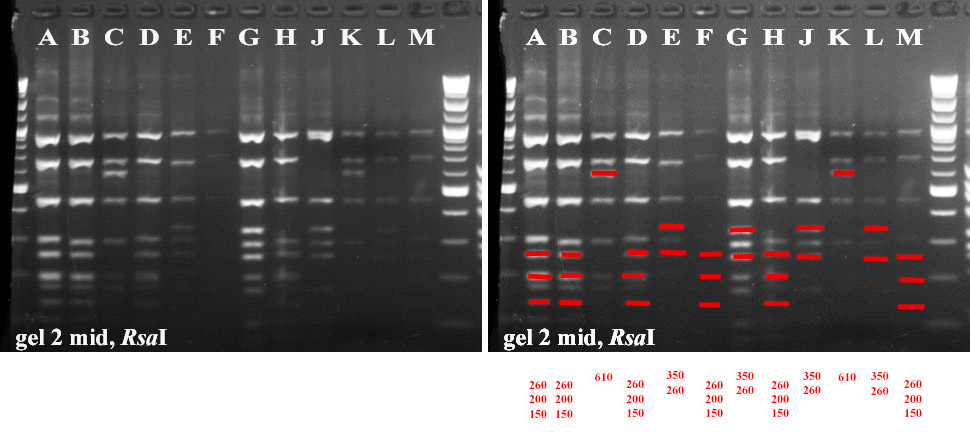

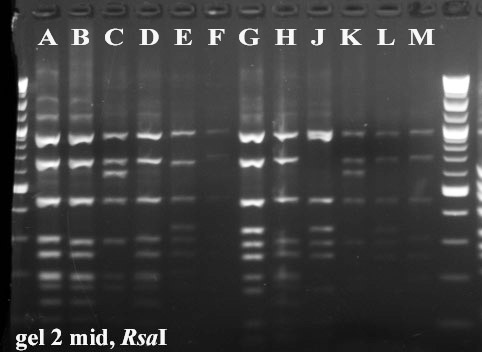

![]() trnVrbcL RsaI |

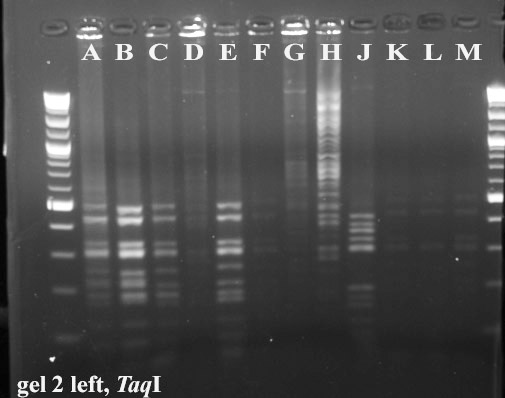

![]() trnVrbcL TaqI |
